The 70mm Celotex GA4070 PIR Insulation Board is a high-performance thermal insulation board suitable for roofs, floors, walls, and timber joists. It features composite foil facings and offers numerous benefits for those who prioritize sustainability.

This environmentally friendly insulation board is manufactured using a blowing agent with zero ozone depletion potential (ODP) and low global warming potential (GWP). It has low-emissivity foil facings that provide improved thermal insulation performance. With a thermal conductivity of 0.022 W/mK, excellent water vapor resistance, and a compressive strength of 140kPa, this insulation board ensures reliable long-term energy savings for buildings.

Specifications

• Material: PIR
• Thickness: 70mm
• Width: 1200mm
• Length: 2400mm
• Purchase Unit: Board
• Coverage: 2.88m2
• Brand: Celotex
• Manufacturer's Code: GA4070
• Weight: 2.61kg/m2
• Thermal Conductivity: 0.022W/mK

Performance

The 70mm Celotex GA4070 PIR Insulation Board has a thermal conductivity of 0.022 W/mK, making it highly efficient in improving the thermal envelope of your home. It is moisture-resistant, has a low global warming potential (GWP), and zero ozone depleting potential (ODP). This insulation board provides reliable long-term energy savings for buildings.

Features and Benefits

• Environmentally friendly insulation board: Made with sustainable materials and manufacturing processes.
• Zero ODP and low GWP: The blowing agent used in production has no ozone depletion potential and low global warming potential.
• Improved thermal insulation performance: The board is equipped with low-emissivity foil facings, enhancing its ability to retain heat and reduce energy loss.
• Excellent water vapor resistance: Protects against moisture damage and helps maintain the integrity of the insulation.
• High compressive strength: With a compressive strength of 140kPa, the board can withstand heavy loads without compromising its insulation properties.
• Easy to cut and shape: Allows for effortless installation and customization to fit specific requirements.
• Long-term energy savings: Provides reliable insulation, reducing heat transfer and lowering energy consumption for extended periods.
• Fire-resistant: Offers enhanced fire protection, contributing to the safety of the building.
• Sound insulation: Helps reduce noise transmission, creating a quieter and more comfortable indoor environment.
• Durable and long-lasting: Designed to withstand the test of time, ensuring continued insulation performance over the years.

Applications

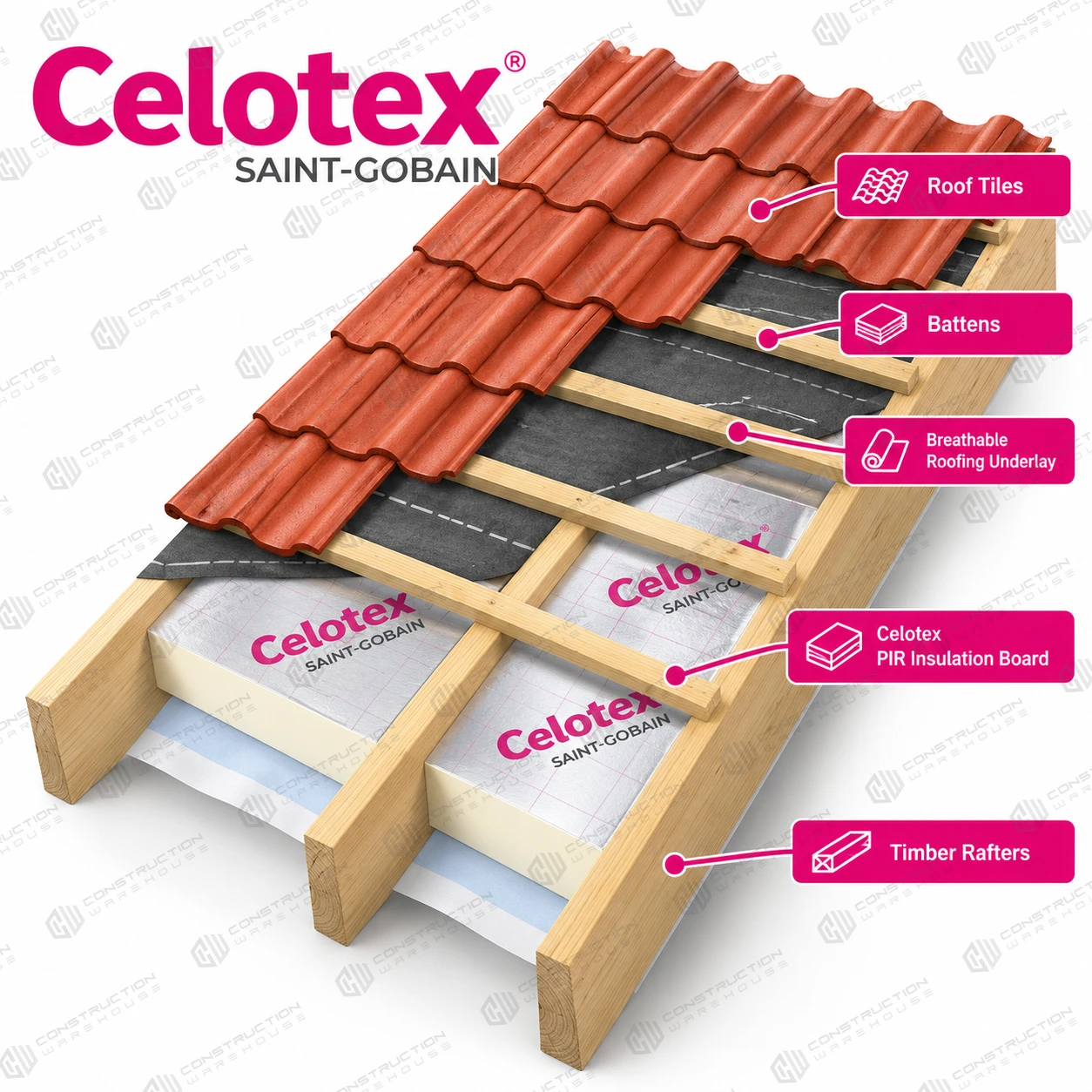

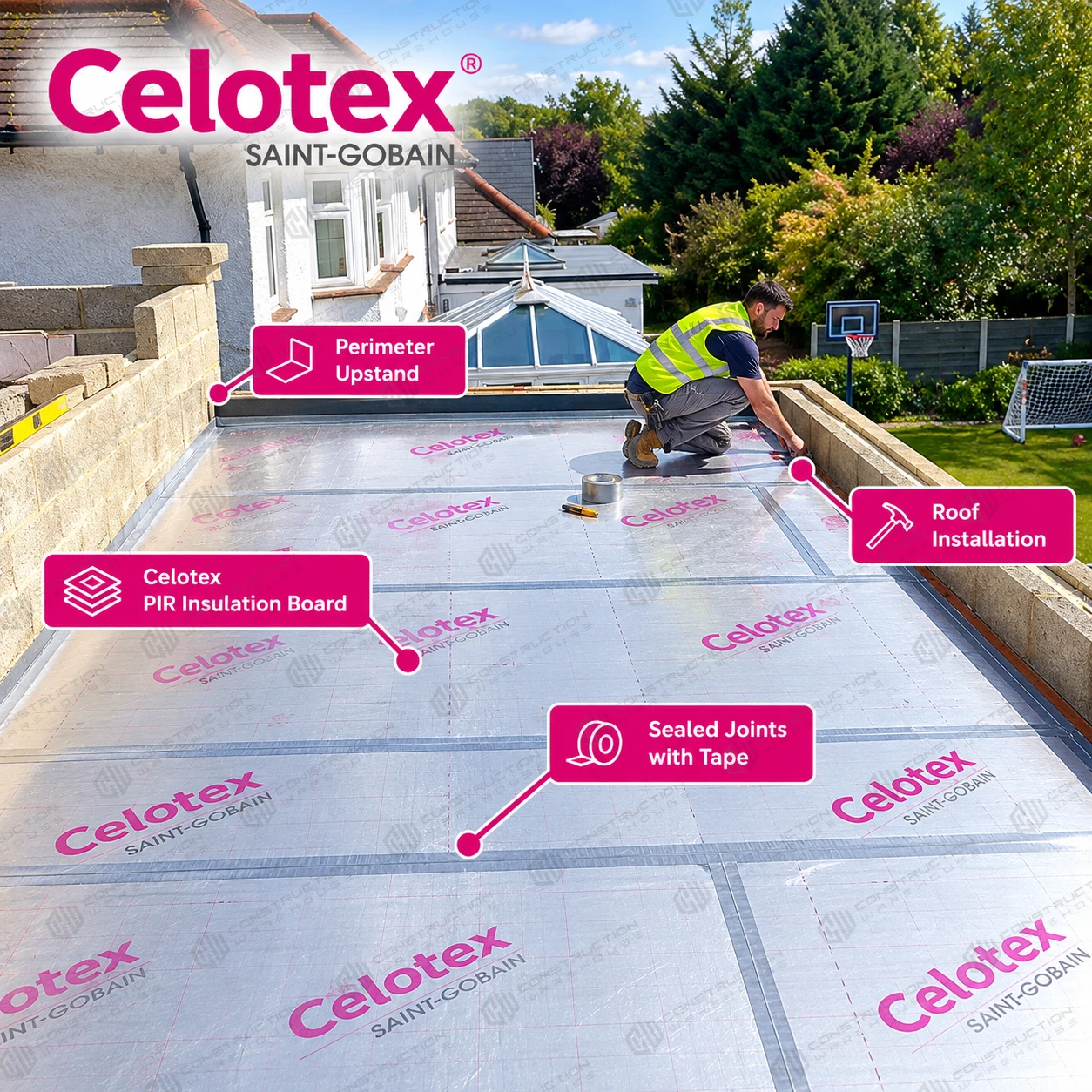

• Roof Insulation: The Celotex GA4070 PIR Insulation Board is commonly used for insulating roofs. It helps in reducing heat loss, thus maintaining a comfortable temperature inside the building.
• Floor Insulation: This product is also used for insulating floors. It helps in preventing heat loss through the floor, making the building more energy-efficient.
• Wall Insulation: The Celotex GA4070 PIR Insulation Board can be used for insulating walls. It helps in reducing heat transfer through the walls, thus maintaining a comfortable indoor temperature.
• Cavity Wall Insulation: This product is suitable for cavity wall insulation. It helps in reducing heat loss through the cavity walls, thus improving the energy efficiency of the building.
• Loft Insulation: The Celotex GA4070 PIR Insulation Board can be used for insulating lofts. It helps in preventing heat loss through the loft, thus maintaining a comfortable temperature inside the building.

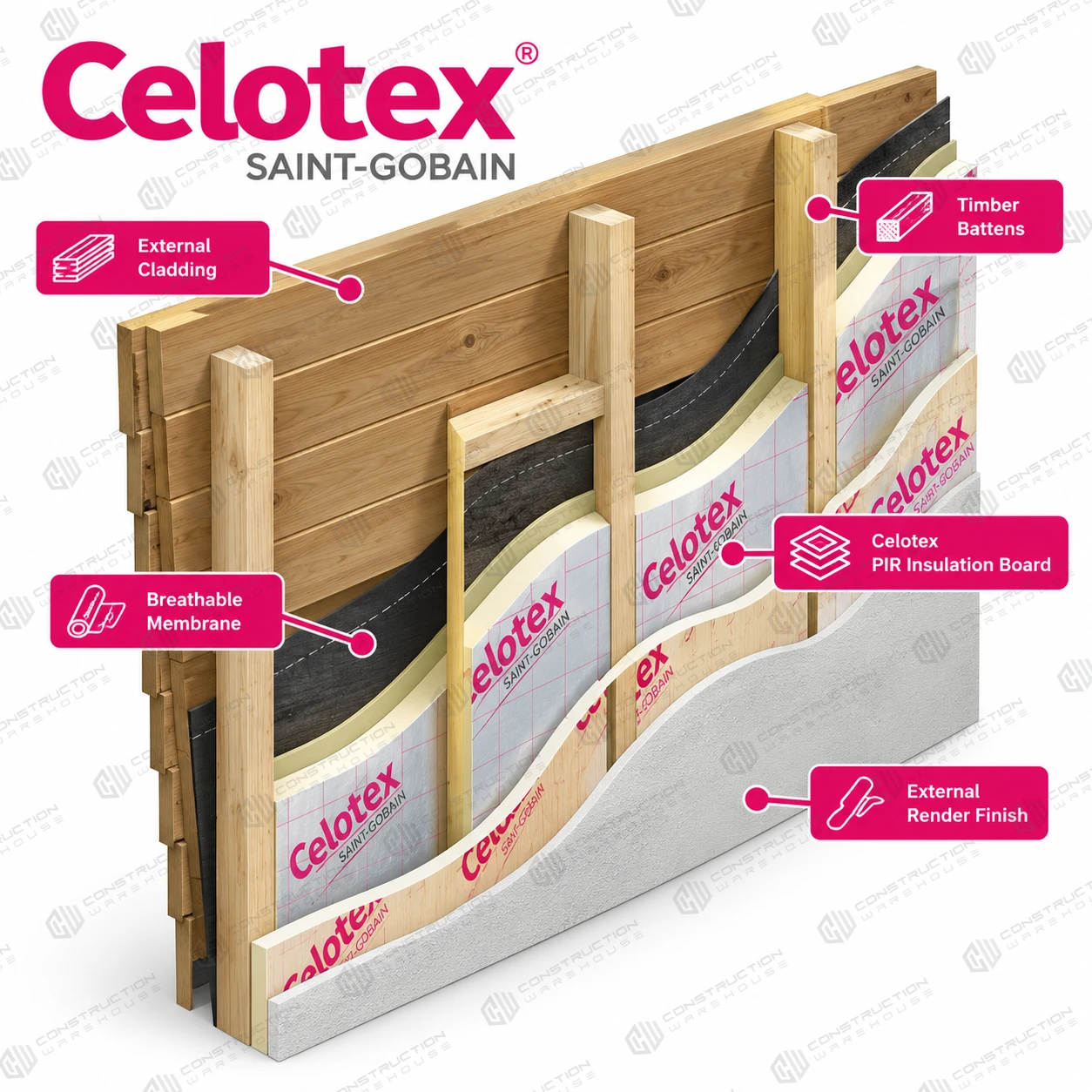

• Timber Frame Insulation: This product is also suitable for insulating timber frames. It helps in reducing heat loss through the timber frames, thus improving the energy efficiency of the building.
• Soffit Insulation: The Celotex GA4070 PIR Insulation Board can be used for insulating soffits. It helps in reducing heat loss through the soffits, thus maintaining a comfortable indoor temperature.
• Garage Insulation: This product is suitable for insulating garages. It helps in maintaining a comfortable temperature inside the garage, thus making it more usable throughout the year.

Installation

The 70mm Celotex GA4070 PIR Insulation Board is easy to install. It can be cut and shaped to fit the desired application. For specific installation instructions, please refer to the manufacturer's guidelines.

Certifications

The 70mm Celotex GA4070 PIR Insulation Board has the following certifications:

• Euroclass E Reaction to Fire classification
• Thermal conductivity certification
• Compressive strength certification
• BRE Green Guide Rating of A for sustainability
• BBA certification

Equivalent/Related Products

• 70mm Kingspan Kooltherm K107 Insulation Board
• 70mm Xtratherm Thin-R XT/PR Insulation Board
• 70mm Ecotherm Eco-Versal Insulation Board

About the Manufacturer

Celotex is a leading British manufacturer of PIR insulation boards. The GA4070 is part of the GA4000 product group, which includes various thicknesses ranging from 50mm to 100mm. Celotex is committed to providing high-quality insulation solutions that meet the needs of both residential and commercial buildings.
