The 30mm EcoTherm Eco-Versal PIR Insulation Board is a versatile solution for various applications. It is designed to provide excellent thermal performance and reduce energy costs in roofs, floors, walls, and timber joists.

This high-performance insulation board features a fiber-free rigid polyisocyanurate (PIR) core with composite aluminum foil facings on both sides. With a thermal conductivity of 0.022 W/mK, it offers exceptional thermal performance and minimizes the risk of condensation.

The lightweight boards measure 2400mm x 1200mm and are easy to cut and fit between studs. They are also resistant to alkalis, dilute acids, mineral oil, and petrol.

Specifications

• Material: PIR
• Thickness: 30mm
• Width: 1200mm
• Length: 2400mm
• Purchase Unit: Board
• Coverage: 2.88m2
• Brand: EcoTherm
• Manufacturer's Code: 100000012557
• Weight: 1.33kg/m2
• Thermal Conductivity: 0.022W/mK
• R Value: 1.36m2K/W
• Spread Of Flame: Class 1 - BS 476-7
• Weight: 1.33kg/m2
• Sales Unit: 2.88m2
• Sales Unit Coverage: 2.88m2

Performance

The EcoTherm Eco-Versal PIR Insulation Board offers excellent thermal performance with a thermal conductivity of 0.022 W/mK. It helps to reduce heat loss and improve energy efficiency in buildings. The boards also have high water vapor resistance, minimizing the risk of condensation and mold growth.

Features and Benefits

• High-performance thermal insulation board: Provides excellent insulation to help reduce heat loss and improve energy efficiency.
• Composite foil facings for enhanced durability: The foil facings add strength and durability to the insulation board, making it resistant to damage and wear.
• Excellent thermal performance: With a thermal conductivity of 0.022 W/mK, the insulation board effectively reduces heat transfer and improves thermal efficiency.
• Minimizes the risk of condensation and mold growth: By providing a barrier against moisture, the insulation board helps prevent condensation and the growth of mold, ensuring a healthier indoor environment.
• Easy to cut and fit between studs: The insulation board can be easily cut to size and fitted between studs, making installation quick and hassle-free.
• Lightweight and easy to handle: The insulation board is lightweight, making it easy to handle and transport, reducing the strain on installers.
• Resistant to alkalis, dilute acids, mineral oil, and petrol: The insulation board is resistant to various chemicals and substances, ensuring long-lasting performance and durability.
• Reduces noise transmission: The insulation board also helps to reduce noise transmission, creating a quieter and more comfortable living or working environment.
• Environmentally friendly: Made from eco-friendly materials, the insulation board is a sustainable choice that helps reduce carbon footprint and supports green building practices.

Applications

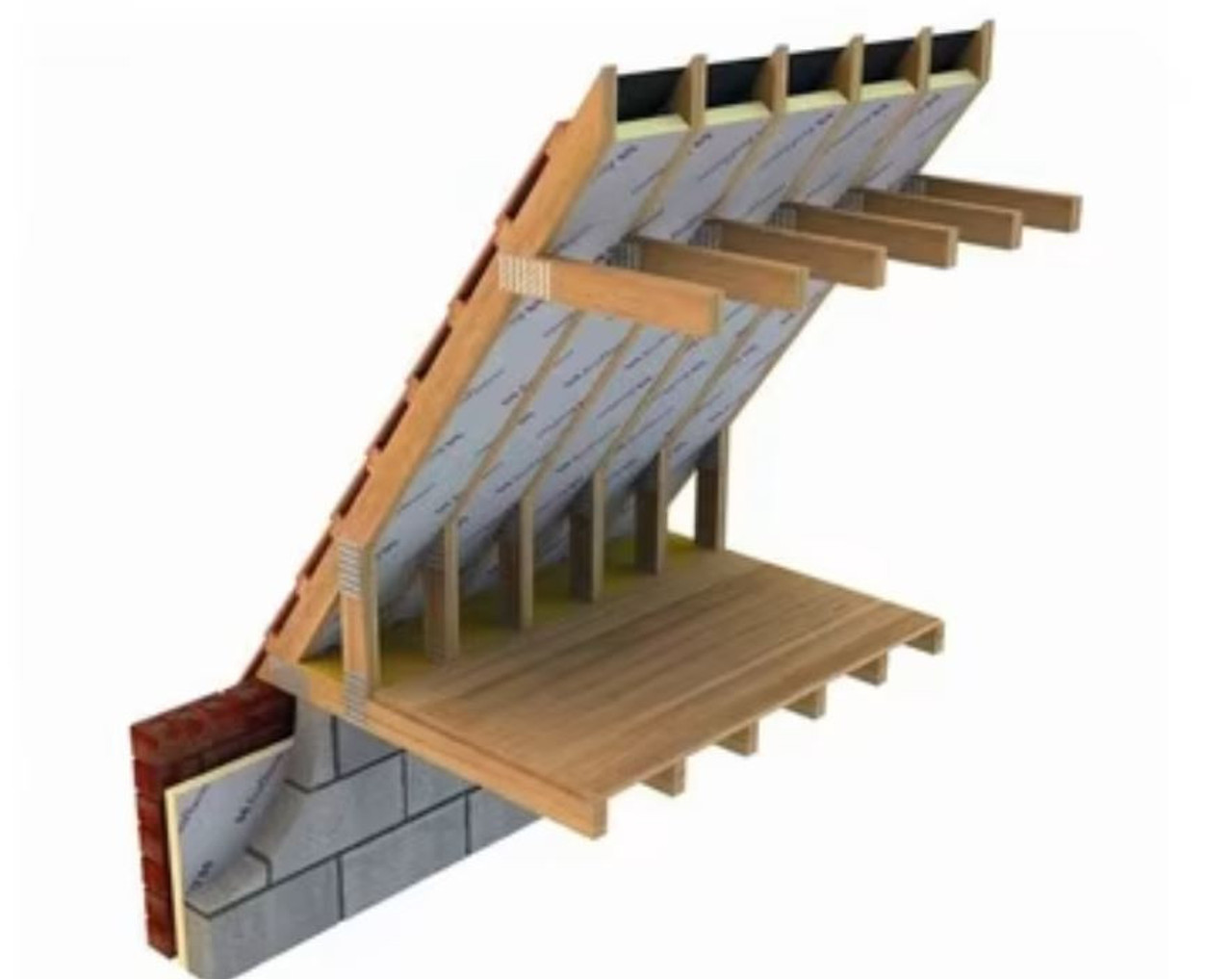

• Roof Insulation: The EcoTherm 30mm Eco-Versal PIR Insulation Board is ideal for insulating roofs. It can be used in both flat and pitched roofs to improve thermal performance and reduce energy consumption.
• Wall Insulation: This product can be used to insulate walls in both new build and refurbishment projects. It can be applied to solid, cavity, and timber frame walls.
• Floor Insulation: The EcoTherm 30mm Eco-Versal PIR Insulation Board can be used to insulate floors, providing a high level of thermal resistance and reducing heat loss through the floor.
• Loft Insulation: This insulation board can be used in lofts to prevent heat loss through the roof, making homes more energy efficient and comfortable.
• Insulation for Industrial Buildings: The product is suitable for insulating industrial buildings, helping to maintain a stable temperature and reduce energy costs.
• Insulation for Agricultural Buildings: The EcoTherm 30mm Eco-Versal PIR Insulation Board can be used in agricultural buildings to provide thermal insulation and improve energy efficiency.
• Insulation for Caravans and Mobile Homes: This product can be used to insulate caravans and mobile homes, helping to keep them warm in winter and cool in summer.

Installation

The EcoTherm Eco-Versal PIR Insulation Board is easy to handle and install. It can be cut using a fine-toothed saw while wearing appropriate hand and eye protection. The boards should be stored in a flat, dry area off the ground to avoid mechanical and water damage.

Certifications

The EcoTherm Eco-Versal PIR Insulation Board meets various certifications, including:

• British and European Standard Specifications (BS EN)
• Compression strength of 140 kPa
• Endorsed by the Energy Savings Trust (EST)
• Euroclass rating of F

Equivalent/Related Products

• 30mm Kingspan Kooltherm K108 Cavity Board
• 30mm Celotex GA4000 Insulation Board
• 30mm Xtratherm Thin-R XT/PR Insulation Board

About EcoTherm

EcoTherm is a UK-based company that specializes in the development, manufacture, and supply of thin polyisocyanurate (PIR) rigid thermal insulation board products. They offer a range of insulation solutions, including the Eco-Versal, Eco-Torch, and Eco-Cavity ranges. The EcoTherm Eco-Versal PIR Insulation Board provides a versatile and high-performance insulation solution for various applications.
