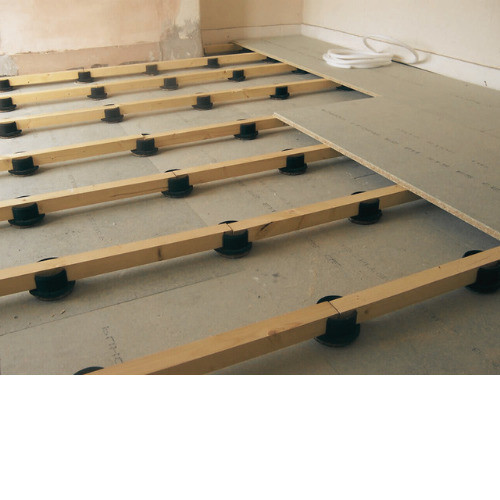

SB Cradle (Pack of 90) - Timber batten support is a composite adjustable cradle designed for impact sound insulation on concrete or timber separating floors. It is ideal for correcting uneven floor surfaces without the need for packers, reducing labor costs. The cradle consists of a 60mm deep x 90mm diameter polycarbonate cradle with a 10mm acoustic resilient layer of SB feltTM. It is compatible with a range of SB-Systems that exceed the current Building Regulation requirements and is Robust Details FFT2 compliant for floor structures EFC-1, EFC-2, and EFS-1.

It is a timber batten support with adjustable threads that allow for precise leveling on uneven sub-floors when upgrading or adding acoustic performance to separating floors. It can be used in both new build and refurbishment projects to correct discrepancies in concrete and timber floors without the need for packers. Additionally, it is ideal for creating a service void as part of a sound insulation system.

Specifications

• Can be used on concrete or timber
• Consists of a 60mm deep x 90mm diameter polycarbonate cradle with an 'O' support ring bonded to a 10mm SB feltTM resilient layer
• Overall Cradle Dimensions: 90mm diameter x 70mm high; Overall adjustment: 15mm - 60mm above structural base; Cradle Base Thickness: 15mm

Performance

Acoustic Performance - Typical Results*:

Impact (dB)	Airborne (dB)	CTR (dB)
50	58	53

*Results based on a recommended system incorporating SB-Cradles over existing floorboards.

Features and Benefits

• A composite adjustable cradle for impact sound insulation on concrete or timber separating floors
• Ideal for uneven floor surfaces - no need for packers, reduces labor costs
• Compatible with a range of SB-Systems that exceed the current Building Regulation requirements
• Robust Details FFT2 compliant for floor structures EFC-1, EFC-2, and EFS-1
• Consists of a 60mm deep x 90mm diameter polycarbonate cradle with a 10mm acoustic resilient layer of SB feltTM
• Rapid installation time
• Provides excellent impact sound insulation, reducing noise transmission between floors
• Durable and long-lasting construction, ensuring a reliable and effective solution
• Can be easily adjusted to accommodate different floor heights and levels
• Helps to meet and exceed acoustic performance requirements in residential and commercial buildings
• Minimizes the risk of sound transfer, creating a quieter and more comfortable living or working environment
• Enhances the overall acoustic performance of the building, improving occupant satisfaction
• Reduces the need for additional soundproofing measures, saving time and money
• Suitable for use in both new construction and renovation projects
• Provides a stable and secure support for timber battens, ensuring a level and even floor surface
• Helps to prevent the transmission of impact noise, such as footsteps and furniture movement

Applications

• Supporting timber battens in various construction projects
• Used in suspended ceiling installations
• Supporting timber decking
• Used in timber frame construction
• Supporting timber cladding
• Used in timber fencing installations
• Supporting timber joists in flooring systems
• Used in timber roof truss installations
• Supporting timber beams in structural applications
• Used in timber stud wall construction

Installation

Fitting Instructions:

1. Set out the cradles at the required centers and install the battens with the joins directly over a cradle. Leave perimeter cradles/battens at the ends of the batten runs. Ensure that all perimeter cradles/battens are isolated from the walls by at least 25mm.
2. Level the floor by adjusting the 'O' support ring up and down the threads as needed. Lock it in place by turning the carrier upstands against the battens.
3. When planning the floor layout, leave a 10-15mm expansion gap around all perimeters. Fix the flooring to the battens using a generous amount of SB-Bond Panel Adhesive and secure it with ring nails or screws. Additionally, glue the flooring boards together at all teegee joints.
4. Insert SB-Seal 20 Perimeter Seal into the perimeter expansion gap to ensure the floor floats freely from the walls and maintains acoustic isolation. Alternatively, follow the Robust Detail instructions using SB-RD Flanking Strip.

Certifications

• Robust Details FFT2 compliant for floor structures EFC-1, EFC-2, and EFS-1

Equivalent/Related Products

• Hush Cradle
• Karma/SIG/CMS Danskin/Regupol - CMS Danskin Cradles/Saddles
• JCW - JCW Cradle
• Icopal/Monarfloor (BMI) - Monarfloor Acoustic Cradle
• Cellecta - Rubberfon Cradles
• Isomass - Isocheck Cradle
• Trim Acoustics - Trim Cradles
• Proctor Group - Proctors Levelling System
• Thermal Economics - Isosonic Cradle
• Sound Insulation store /UKAS - Acoustic Cradle
• iKoustic - Mute Cradle
• Floorscan/Sound Insulation Store - dB Cradle
