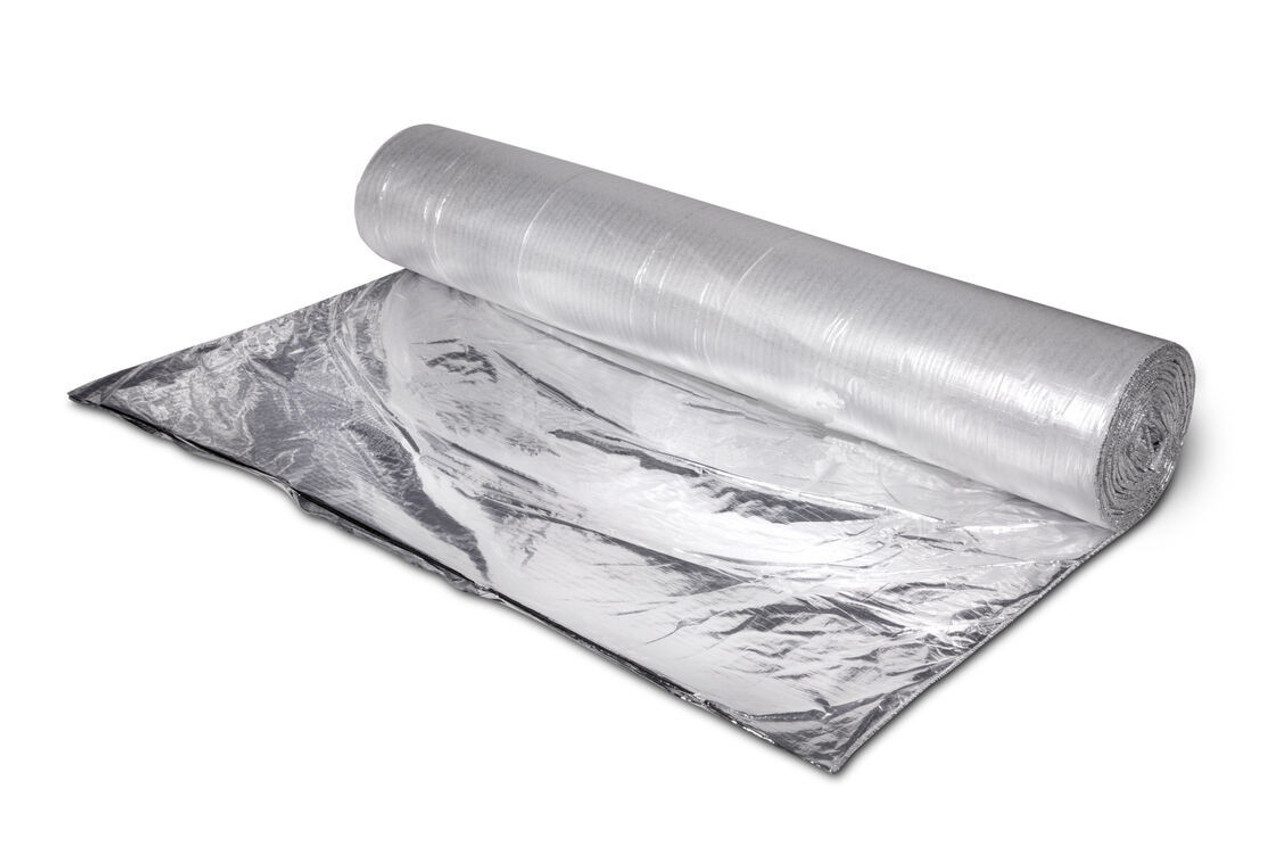

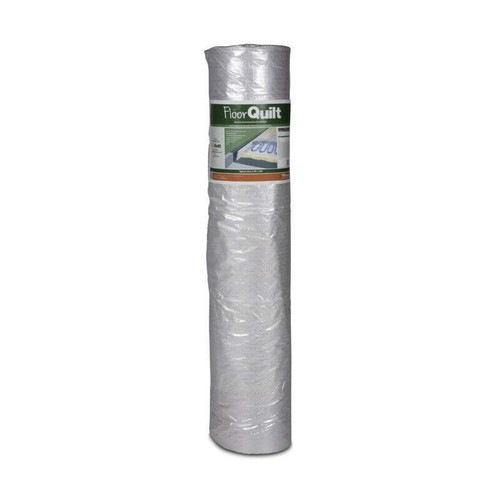

The YBS FloorQuilt Multi-layer Insulation Blanket for Solid Floor is a high-performance insulation solution designed specifically for solid floors. It is ideal for renovation projects with limited room height and can be used below the screed or in conjunction with a solid floor hot water heating system.
With its multi-layered construction, FloorQuilt offers excellent thermal performance and eliminates the risk of thermal bridging. It is a 6mm thick blanket that provides exceptional insulation for solid floors. In fact, it is equivalent to approximately 18mm of PIR insulation. The 13 layers of FloorQuilt ensure uniform reflection of generated heat and eliminate thermal bridging, resulting in improved energy performance.
Its slim profile and high insulation values make it an ideal choice for areas with limited floor heights.
Specifications
- Thickness (approx.): 6mm
- Weight: 250g/m²
- Width: 1.5m
- Length: 10m
- Area per roll: 15m²
- Weight per roll: 5.25Kg
- Impact Noise Delta L: up to 22db
Performance
The YBS FloorQuilt Multi-layer Insulation Blanket for Solid Floor offers exceptional thermal performance, improving the energy efficiency of underfloor heating systems in both new builds and renovation projects. It acts as a high-performing thermal break, reducing heat loss and improving overall comfort. Additionally, FloorQuilt resists the passage of moisture through the floor, ensuring a dry and healthy living environment. Its integrated grid membrane enables easy installation of underfloor heating hot water pipes, further enhancing its performance.
Features and Benefits
- Improves underfloor heating performance: Enhances the efficiency of underfloor heating systems in both new builds and renovation projects.
- Reduces heat loss: Acts as a highly effective thermal break, minimizing heat loss and improving energy efficiency.
- Quick and easy installation: Simple and hassle-free installation process, saving time and effort.
- Thin profile for limited floor heights: With its thin profile and high insulation values, it is perfect for areas with limited floor heights.
- Moisture resistance: Resists the passage of moisture through the floor, ensuring a dry and healthy living environment.
- Durable and long-lasting: Non-degradable material maintains thermal performance through uniform reflection of generated heat.
- Eliminates thermal bridging: Eliminates the risk of thermal bridging, improving overall energy performance and reducing heat loss.
- Integrated grid membrane: Features an integrated grid membrane that enables easy installation of underfloor heating hot water pipes.
- Noise reduction: Reduces impact noise, improving the quality of living and creating a quieter environment.
- Enhances comfort: Provides additional insulation, resulting in a more comfortable living space.
- Cost-effective: Helps to reduce energy bills by improving energy efficiency and reducing heat loss.
Applications
- Underfloor Heating Systems: YBS FloorQuilt is ideal for use in underfloor heating systems. It provides excellent thermal insulation, reducing heat loss and improving the efficiency of the heating system.
- Solid Concrete Floors: This product is specifically designed for solid concrete floors. It helps to prevent cold bridging and condensation, providing a warmer and more comfortable living environment.
- Renovation Projects: YBS FloorQuilt is perfect for renovation projects where the existing floor needs to be insulated. It is easy to install and can significantly improve the thermal performance of the floor.
- Timber Frame Buildings: This insulation blanket can also be used in timber frame buildings. It provides excellent thermal and acoustic insulation, making it a great choice for both residential and commercial buildings.
- Caravans and Mobile Homes: Due to its lightweight and flexible properties, YBS FloorQuilt is suitable for use in caravans and mobile homes. It can help to keep these spaces warm in winter and cool in summer.
- Industrial Buildings: YBS FloorQuilt is also suitable for use in industrial buildings. It can help to reduce energy costs and improve the working environment by providing effective insulation.
Installation
Installing the YBS FloorQuilt Multi-layer Insulation Blanket for Solid Floor is quick and easy. Follow these steps:
- Ensure the floor is clean and free from debris.
- Lay FloorQuilt directly on the solid floor surface, starting at the wall edge with a minimum of 100mm overlapping the wall edge.
- Cut FloorQuilt to size using a craft knife or sharp pair of scissors.
- Butt joint FloorQuilt along the edges on the membrane where they meet each other, covering joints with YBS FloorQuilt jointing tape.
- If installing an underfloor heating system, use the integrated gridding outer membrane to align the hot water piping.
- No protective clothing or handling is required.
- Finally, install the floor screeding according to the manufacturer's instructions and current good building practices.
Certifications
The YBS FloorQuilt Multi-layer Insulation Blanket for Solid Floor meets the following certifications:
- CE Marked
- Compliant with Building Regulations
Equivalent/Related Products
- YBS SuperQuilt Multi-layer Insulation Blanket
- YBS BreatherQuilt Multi-layer Insulation Blanket
- YBS ThermaQuilt Multi-layer Insulation Blanket
About the Manufacturer
YBS Insulation is a leading manufacturer of innovative insulation products. With a focus on energy efficiency and sustainability, YBS Insulation offers a wide range of high-performance insulation solutions for residential and commercial applications. Their products are designed to meet the highest standards of quality and performance, ensuring long-lasting comfort and energy savings.
